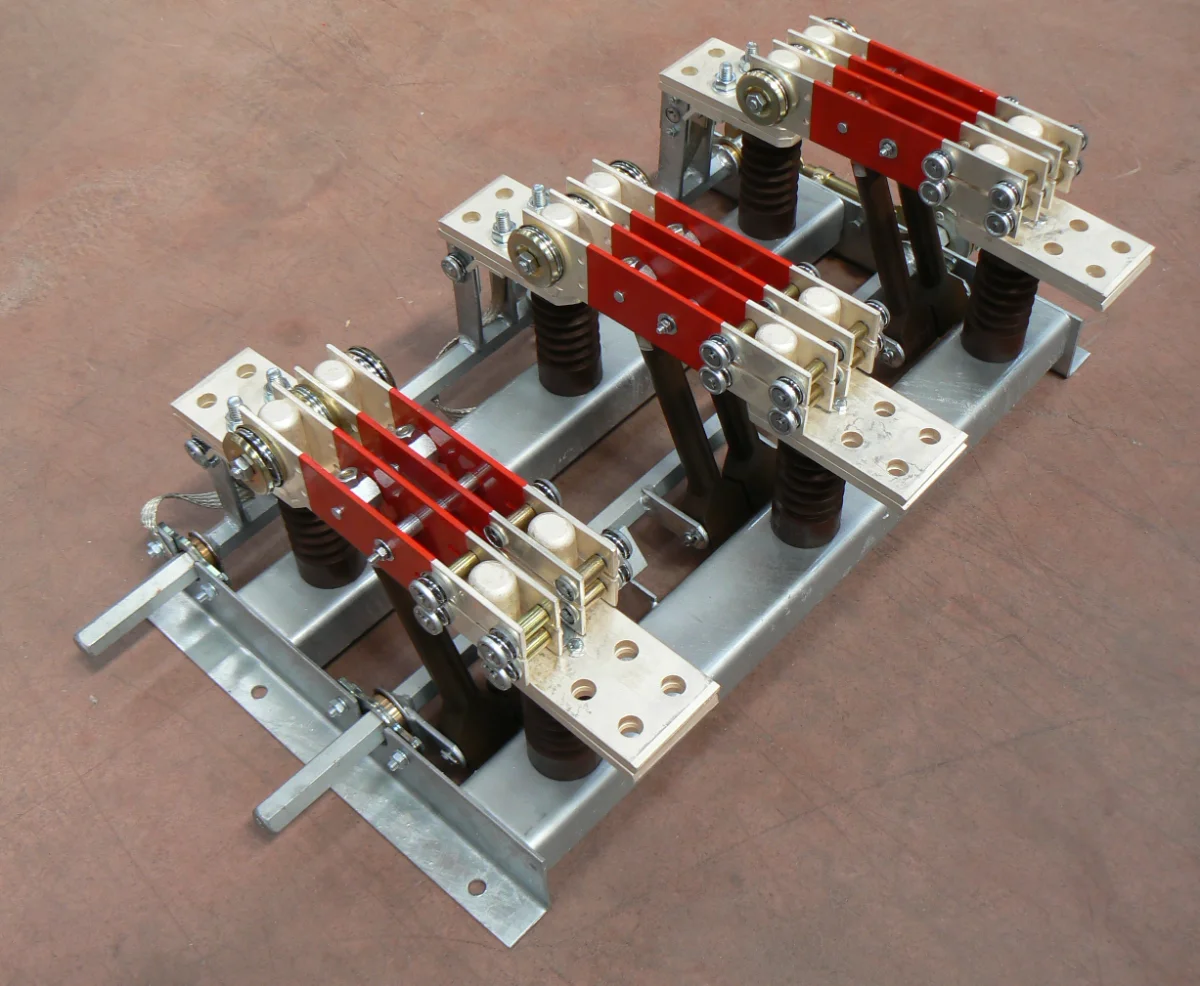

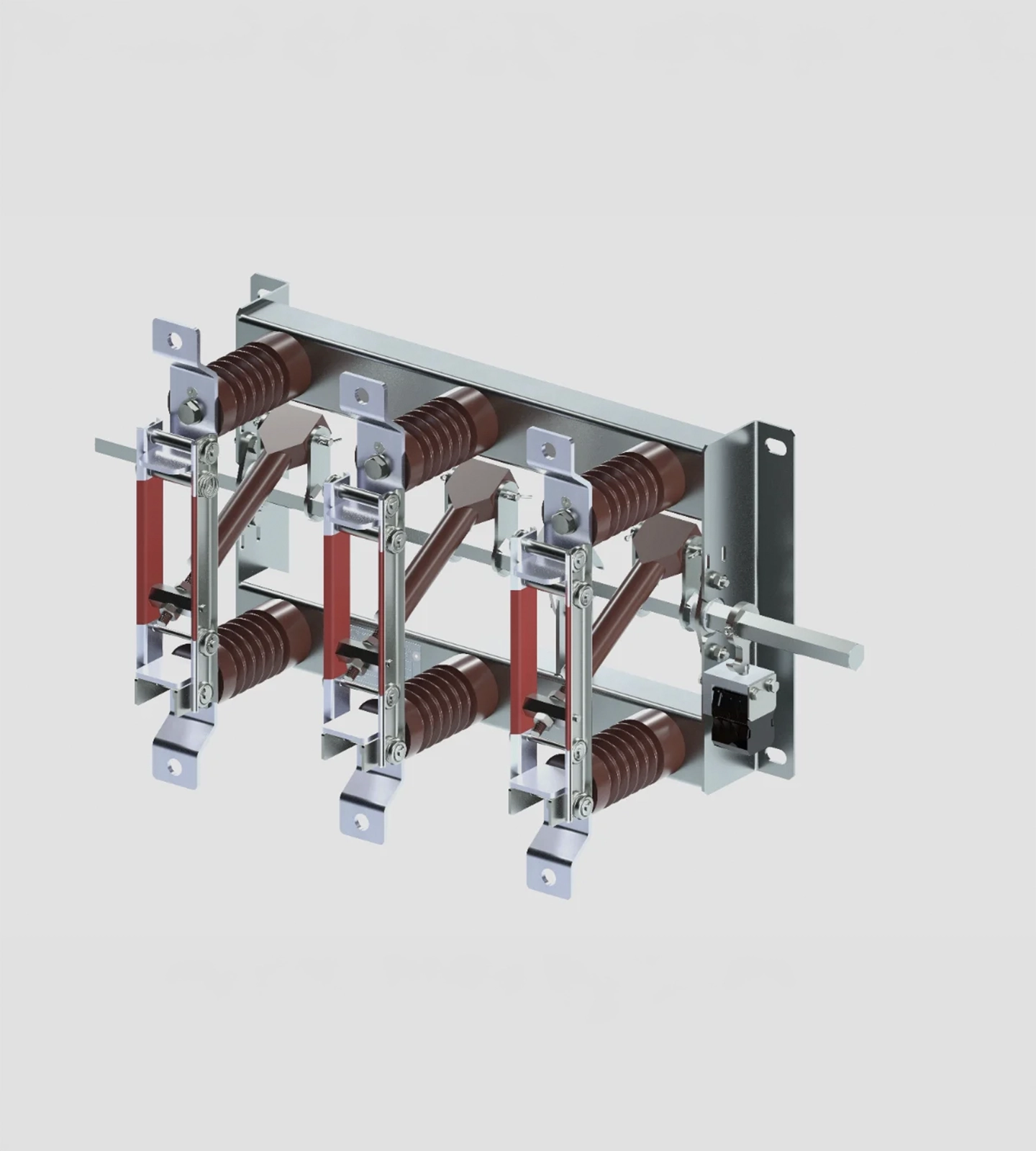

Indoor Disconnectors
TECHNICAL INFORMATION
Rated Voltage
3,6kV – 52kV
Rated Current
from 50A
Rated Short-time Withstand Current (1s):
Up to 63kA
Rated Frequency
50 / 60 Hz
Mechanical Endurance
Up to 10.000 O-C cycles
Insulator Type
Porcelain, Epoxy Resin or Silicone Rubber

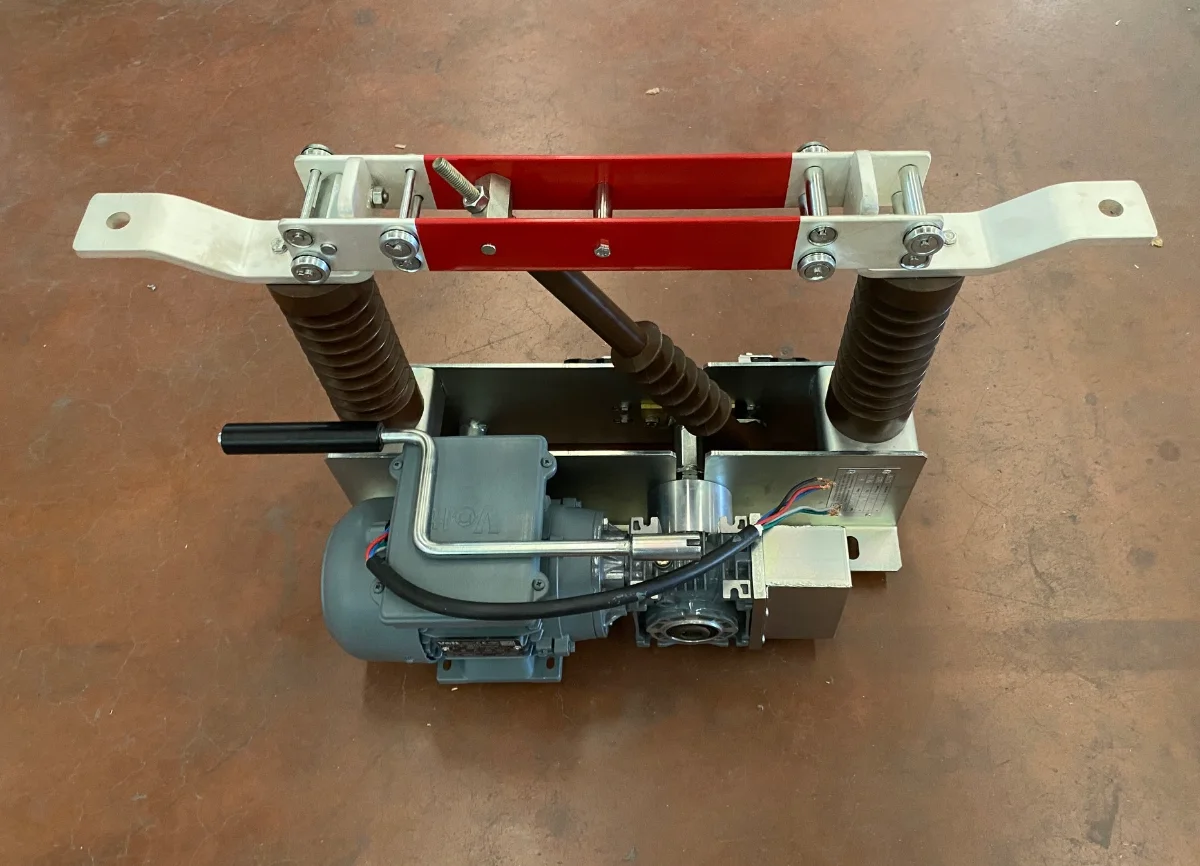

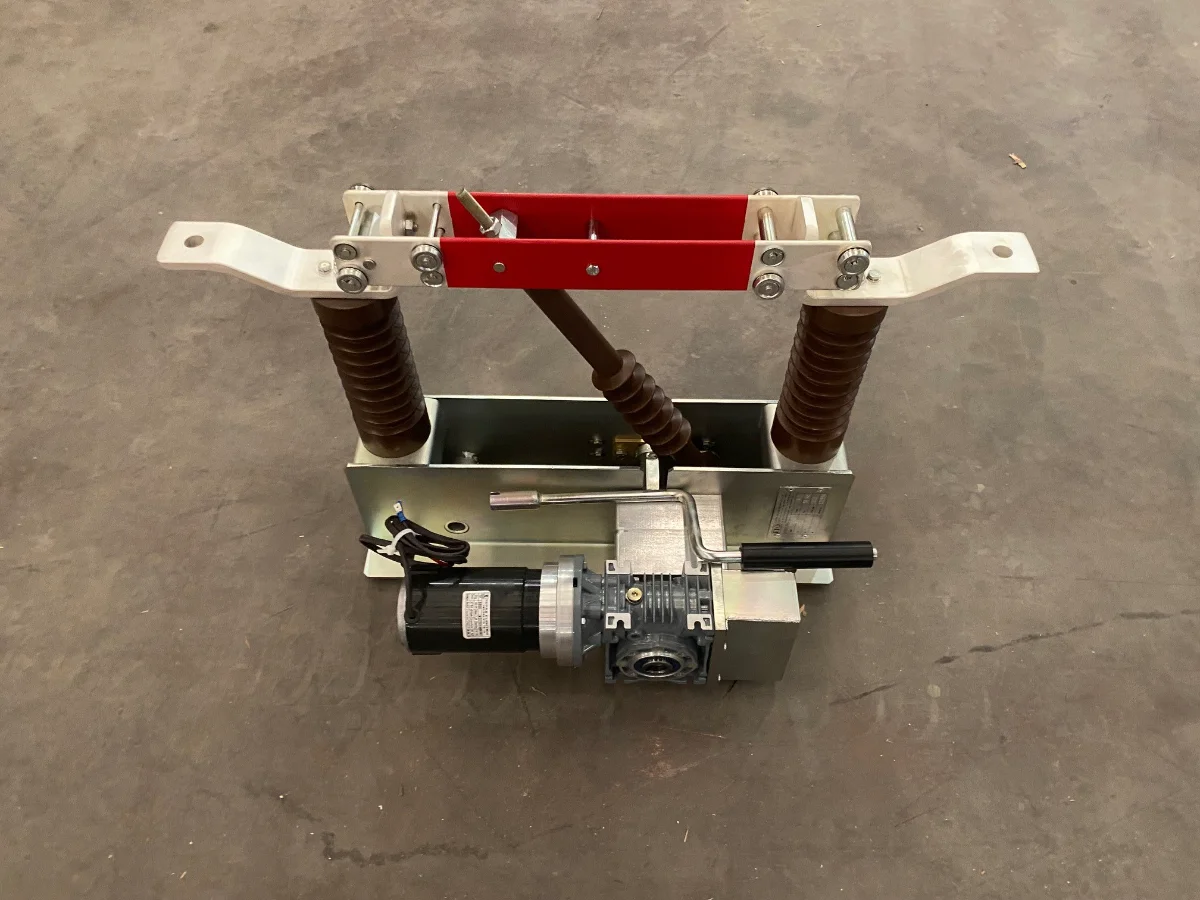

Drive Type

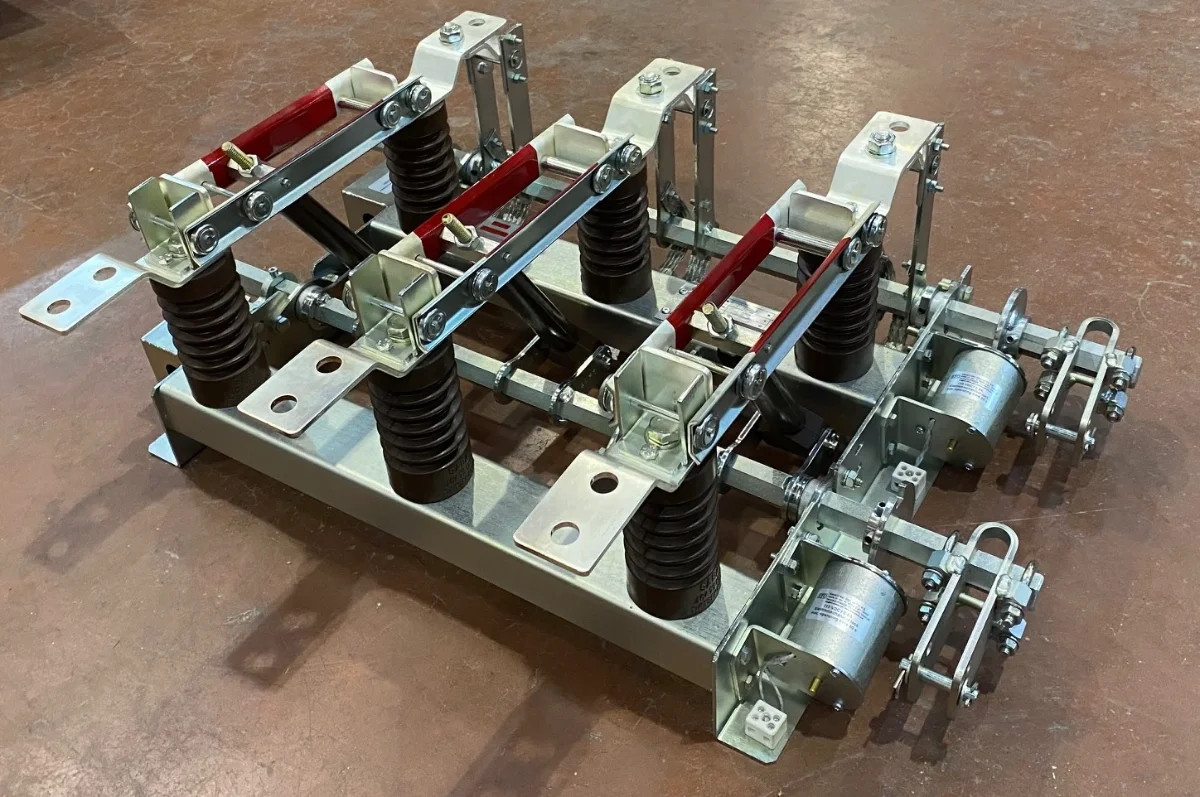

Manual or Motor Drive

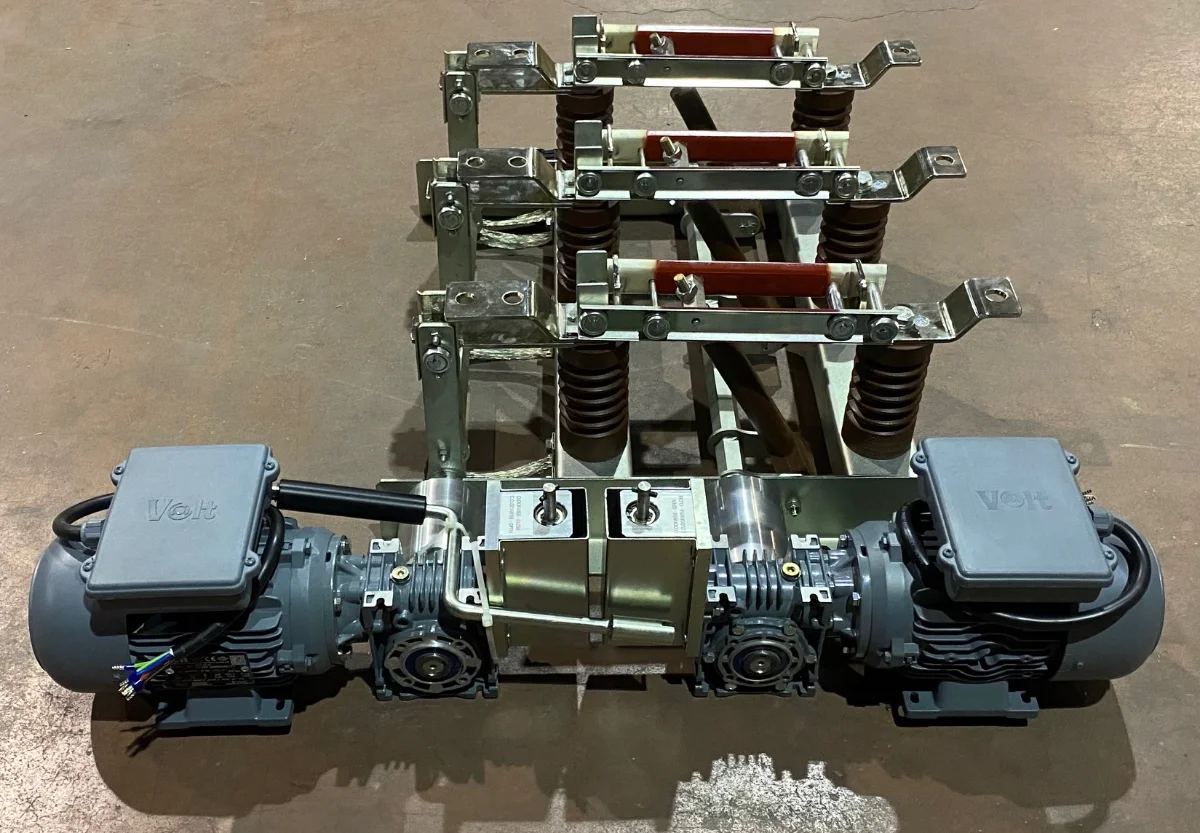

Motor Type
12 / 24 / 48 / 110 V DC – 220 / 400 V AC
Supplementary Equipment

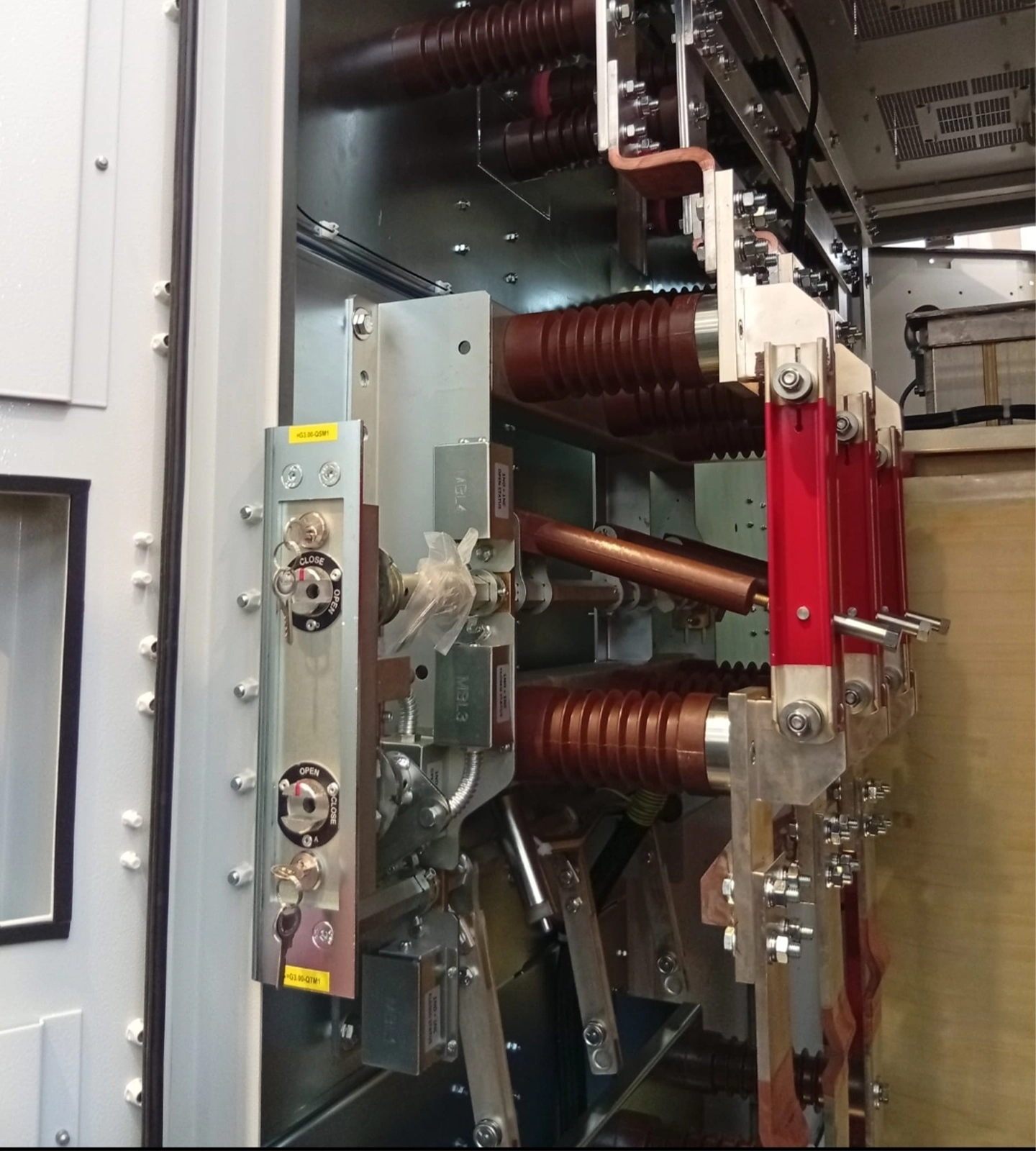

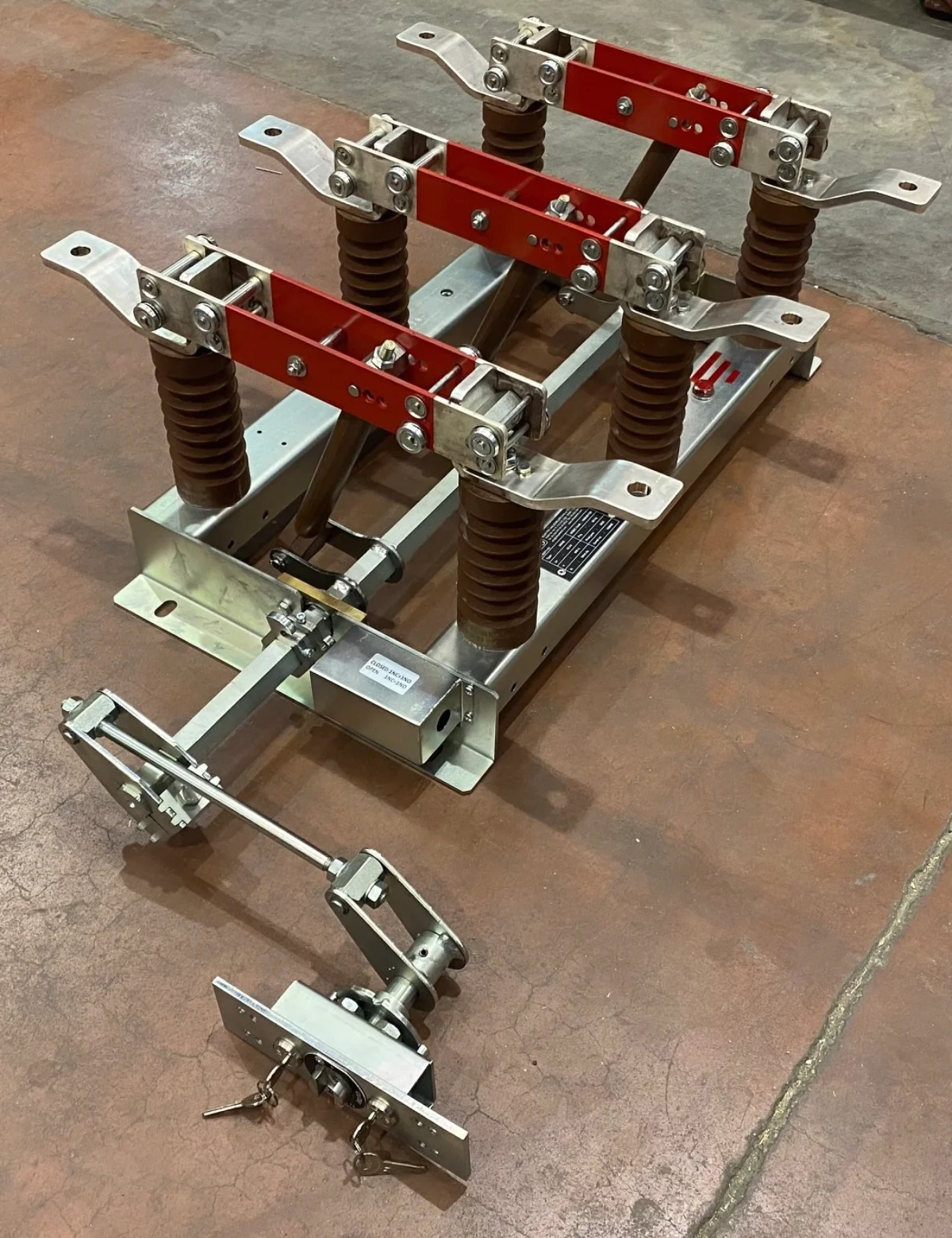

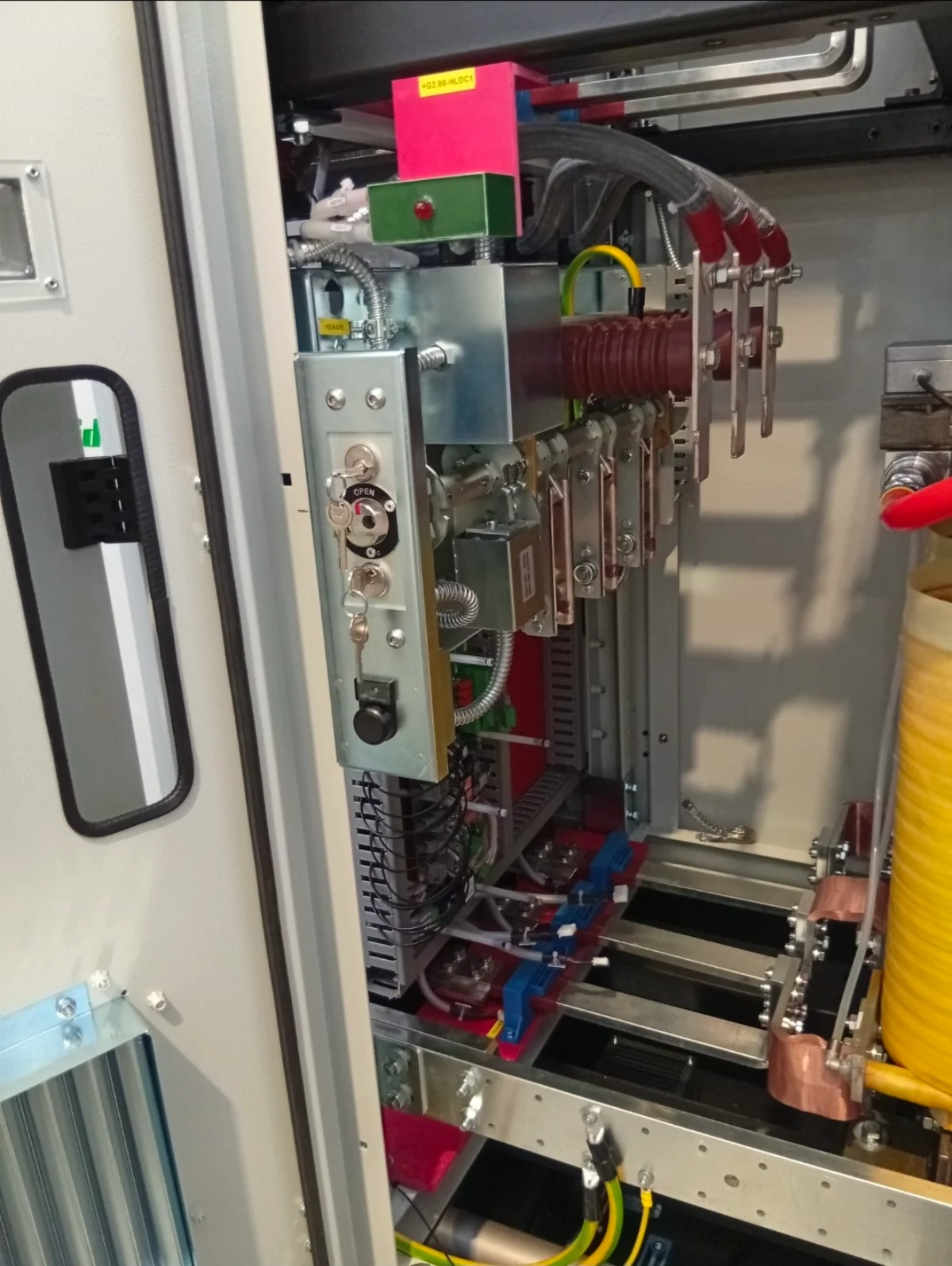

Auxiliary Contacts, Electromagnetic Locking, Interlock Key Mechanism
Key Specifications

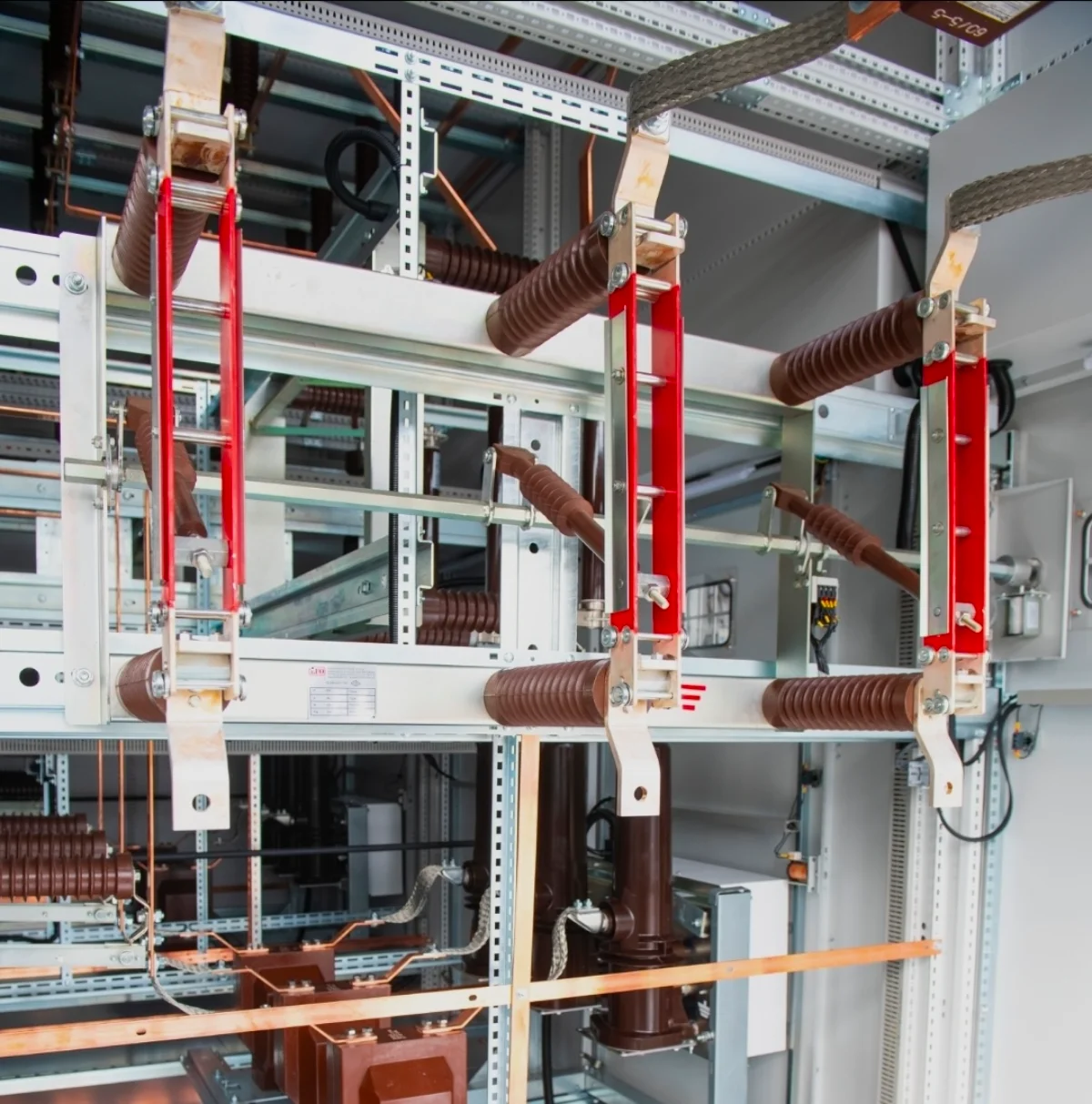

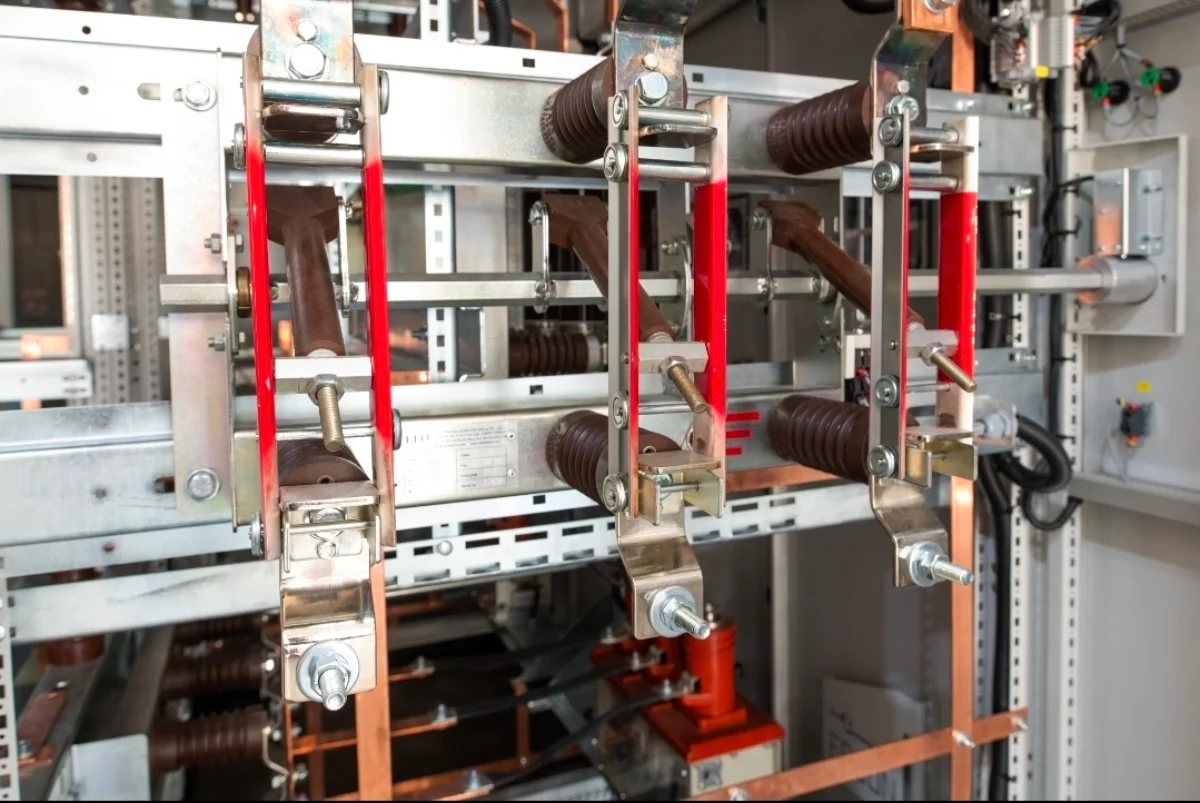

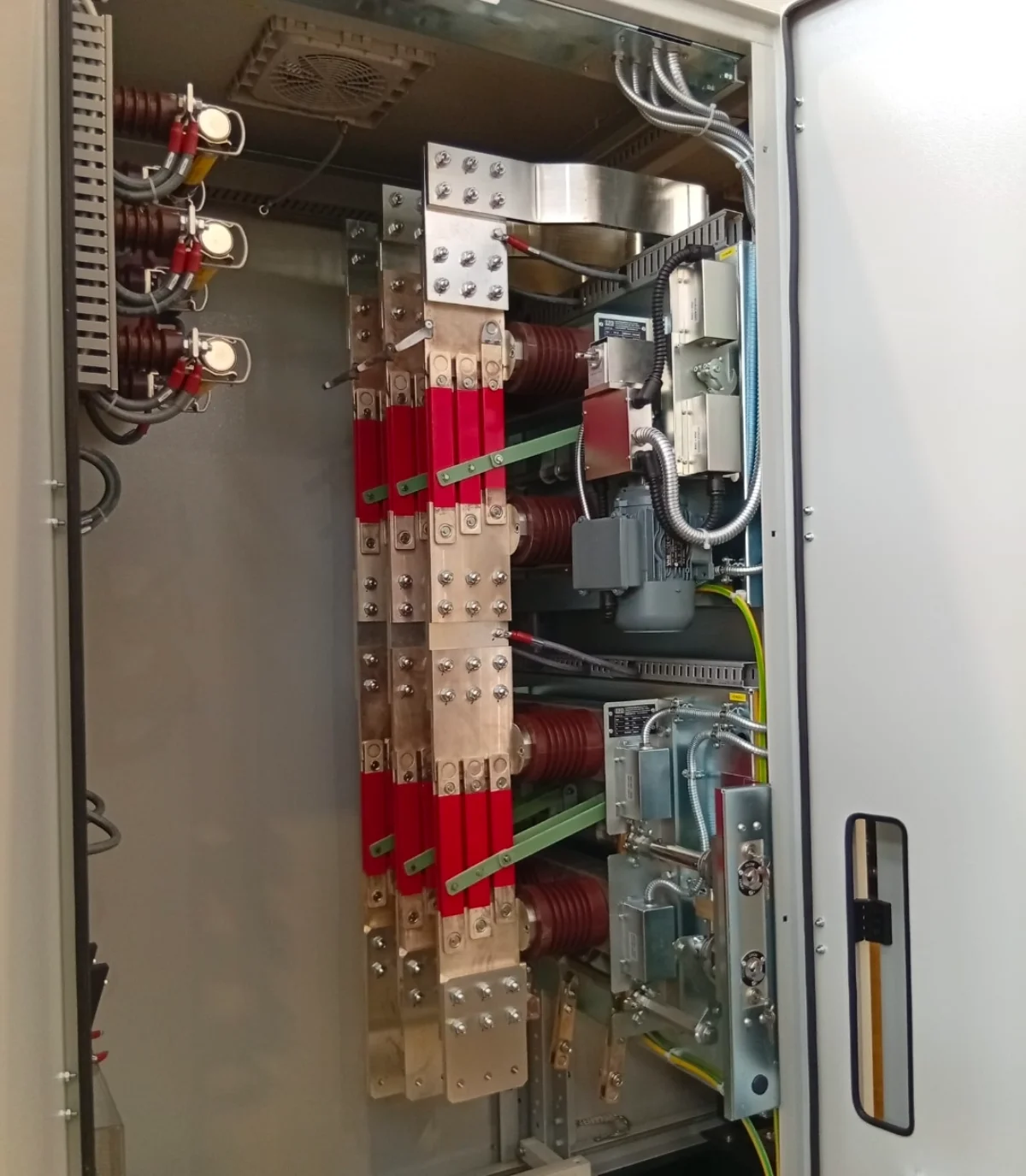

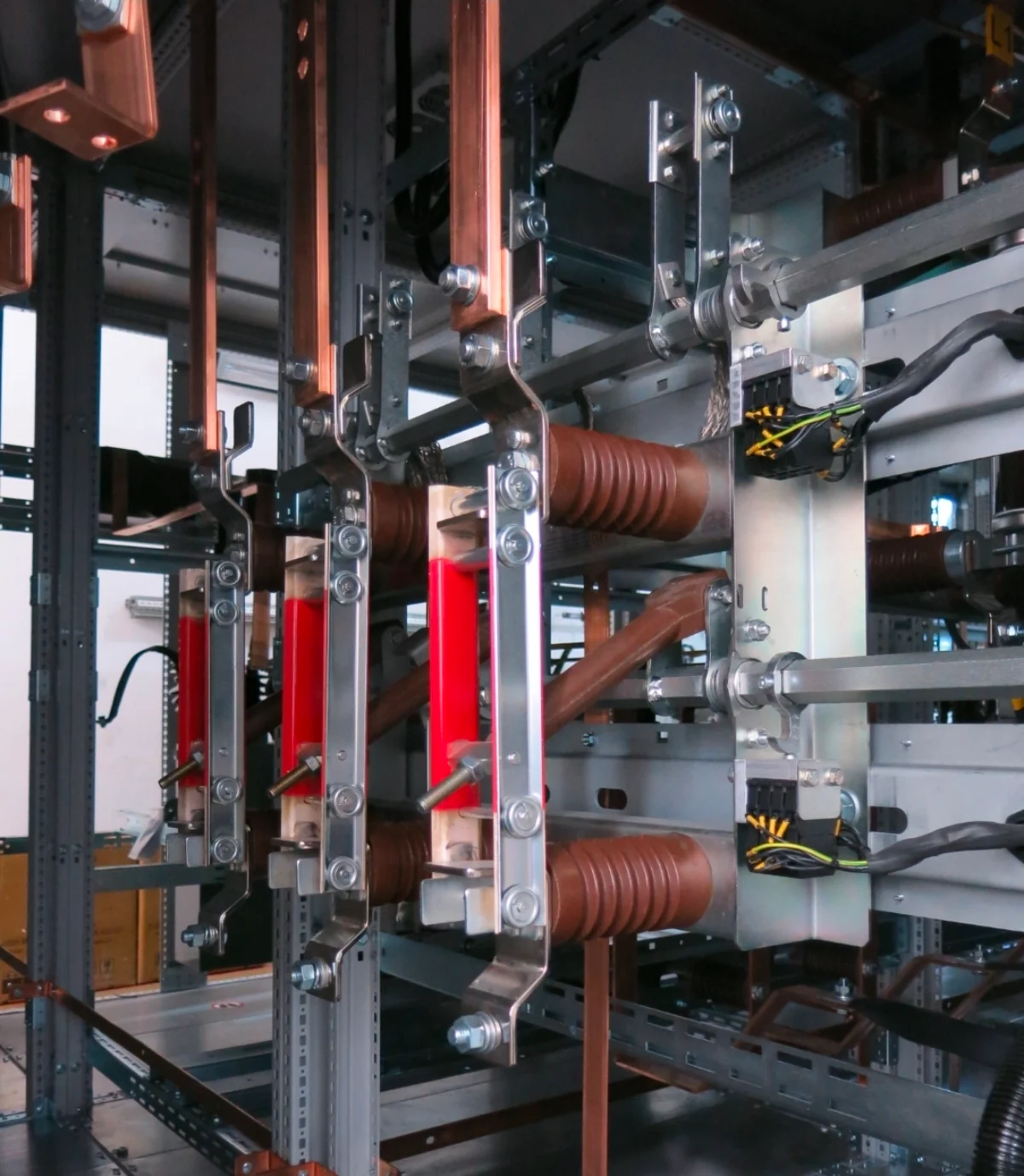

- Intended for switching of no-load circuits in MV switchgear panels, cabinets, and switching stations.
- Designed and manufactured in accordance with IEC 62271-102.
- Main frame and shafts are constructed from electro-galvanized steel for long-term corrosion resistance and structural integrity.
- Porcelain, epoxy resin or silicone rubber insulators with a specific creepage distance of not less than 12 mm/kV, in compliance with IEC 60815 pollution class requirements.
- Fixed and moving contacts are machined from electrolytic copper, silver- or nickel-plated, to maintain low and stable contact resistance throughout the service life.
- Suitable for installation and operation in both horizontal and vertical mounting orientations.
- Compatible with integrated fuse base and/or earthing switch.
- Custom configurations available on request.
Configuration Options
DNA

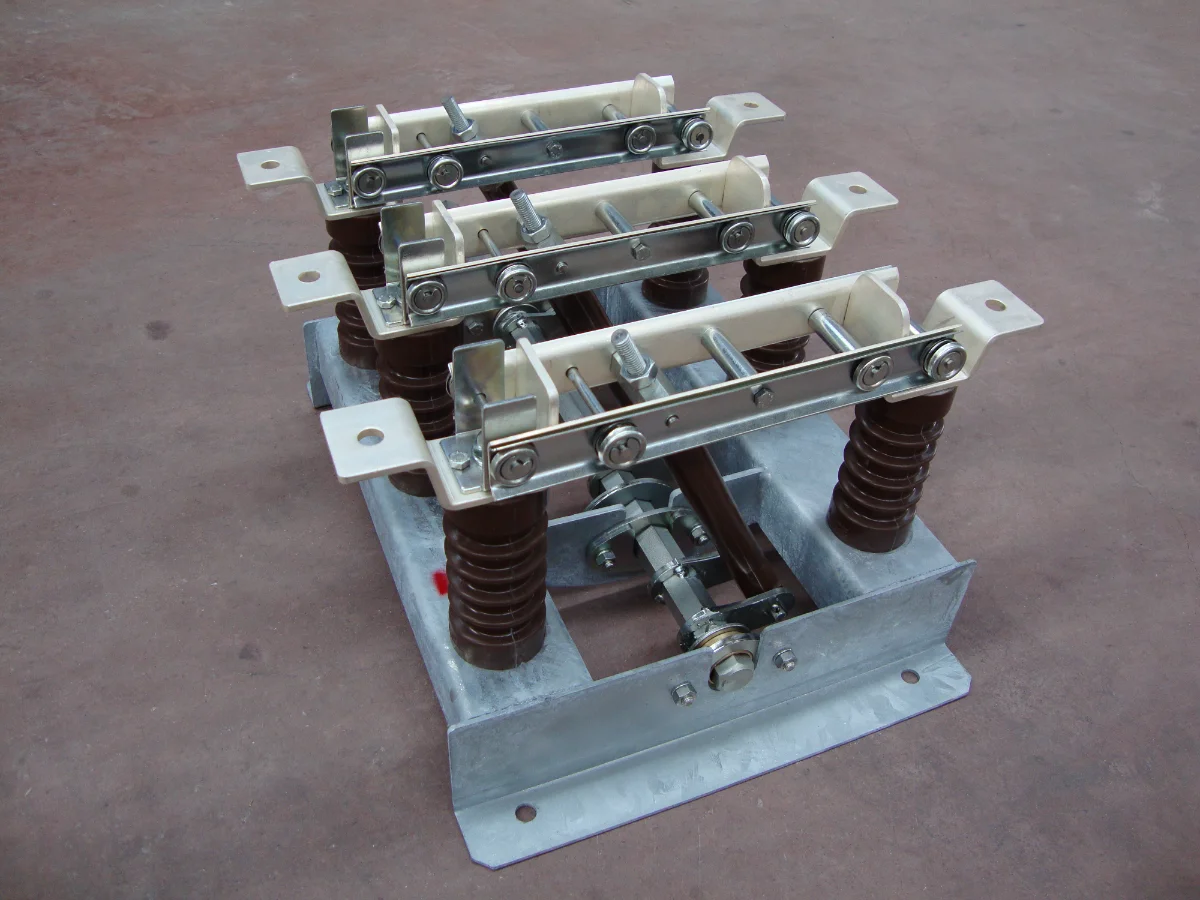

Indoor Disconnector
DTA

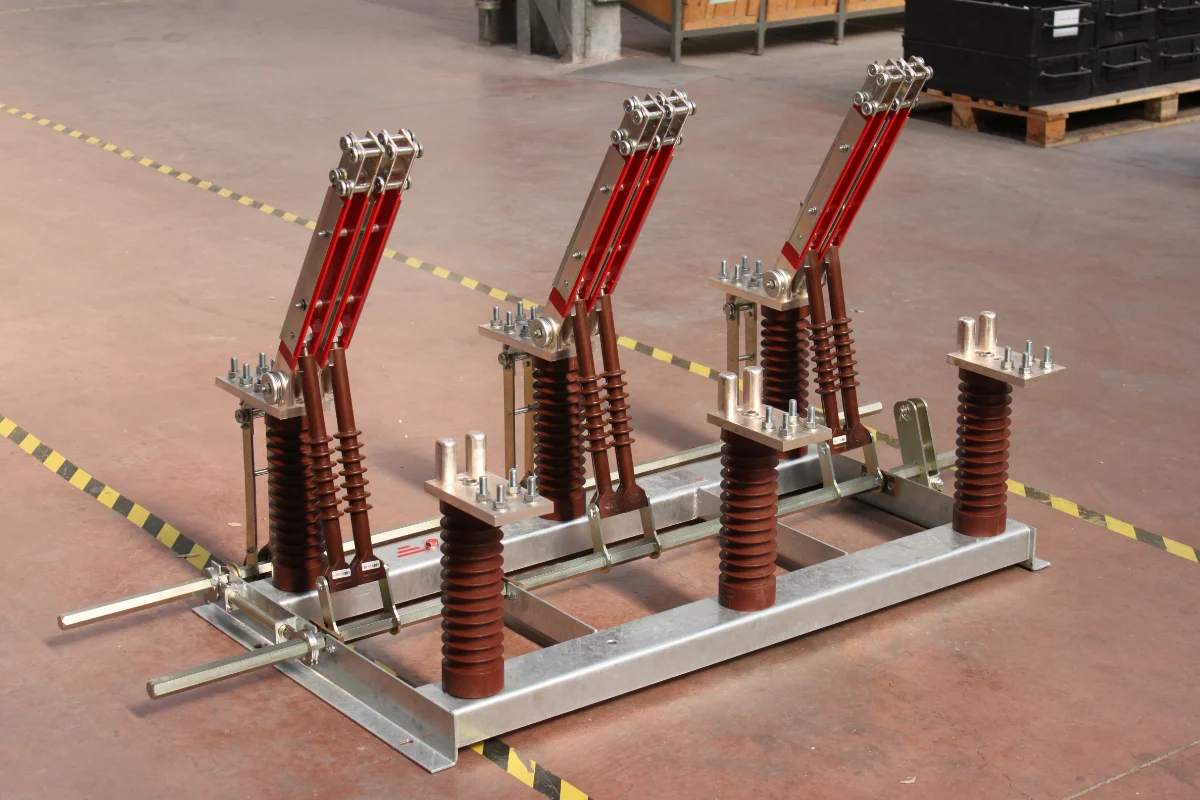

Indoor Disconnector with Earthing Switch
DSA
Indoor Disconnector with Fuse Base
