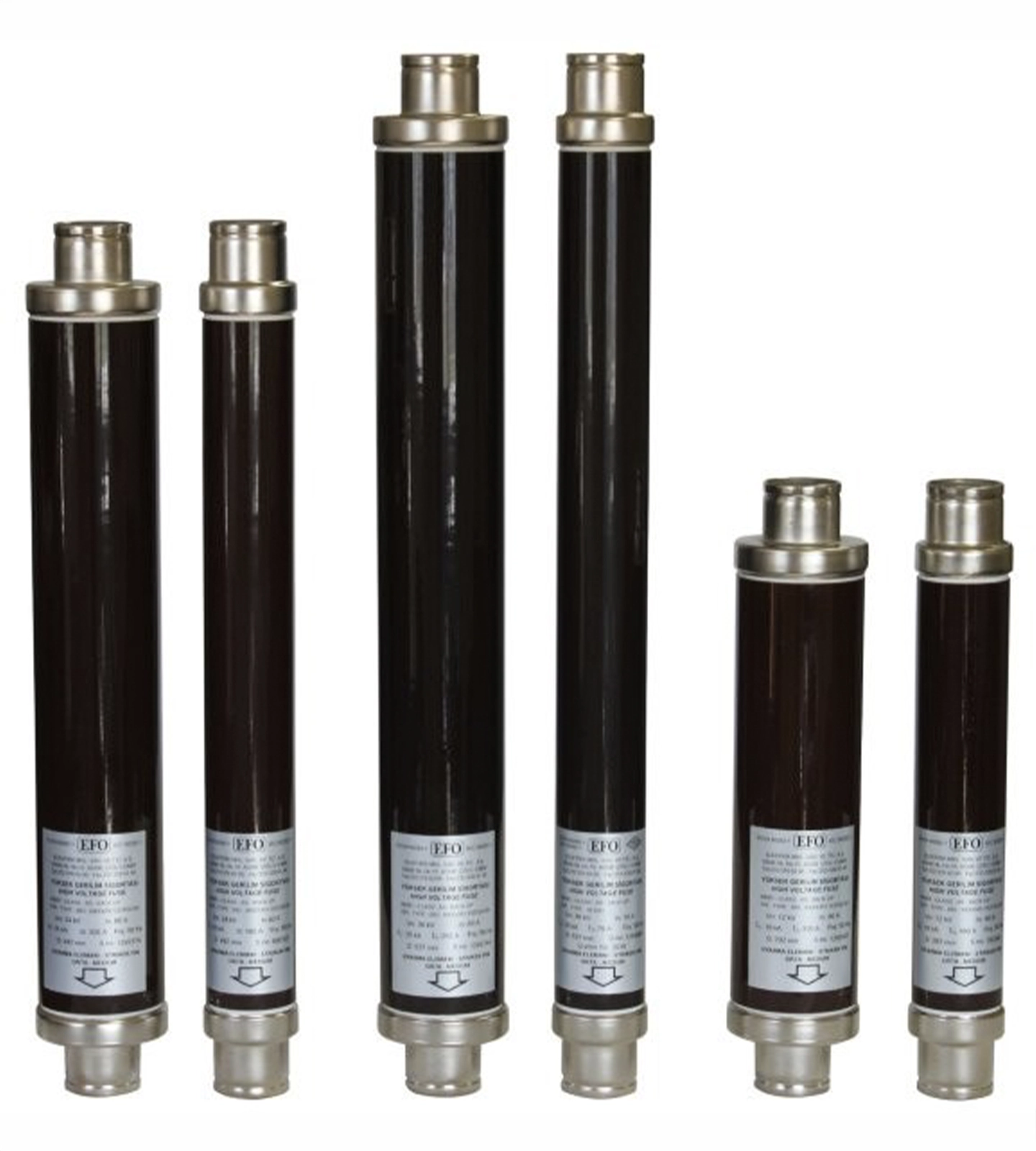

DIN Standard Fuses
TECHNICAL INFORMATION
Class
Back-up
Rated voltage (Uₙ)
3,6kV – 40,5kV
Rated current (Iₙ)
2A – 315A
Maximum Breaking Current (I₁)
Up to 63kA
Minimum breaking current (I₃)
~4×Iₙ
Standard
IEC 60282-1 and DIN 43625
Fuse body
C-120 Alumina Porcelain (Brown Glazed)
Environment
Outdoor and Indoor Use
Key Specifications
- Manufactured in accordance with IEC 60282-1 and DIN 4362.
- Type-tested by KEMA, CESI, IPH and ICMET.
- High rupture capacity ensures reliable interruption of prospective short-circuit currents up to 63kA.
- Current-limiting action clears faults within milliseconds, protecting connected equipment from thermal, electrical, and mechanical stress.
- Low switching overvoltages during interruption protect connected equipment insulation from overvoltage damage.
- Low power dissipation minimizes heat generation during normal operation, preventing excessive temperature rise in the fuse and fuse holder, and extending service life.
- Electrolytic copper contact caps with silver or nickel plating for low, stable contact resistance over the product's service life.

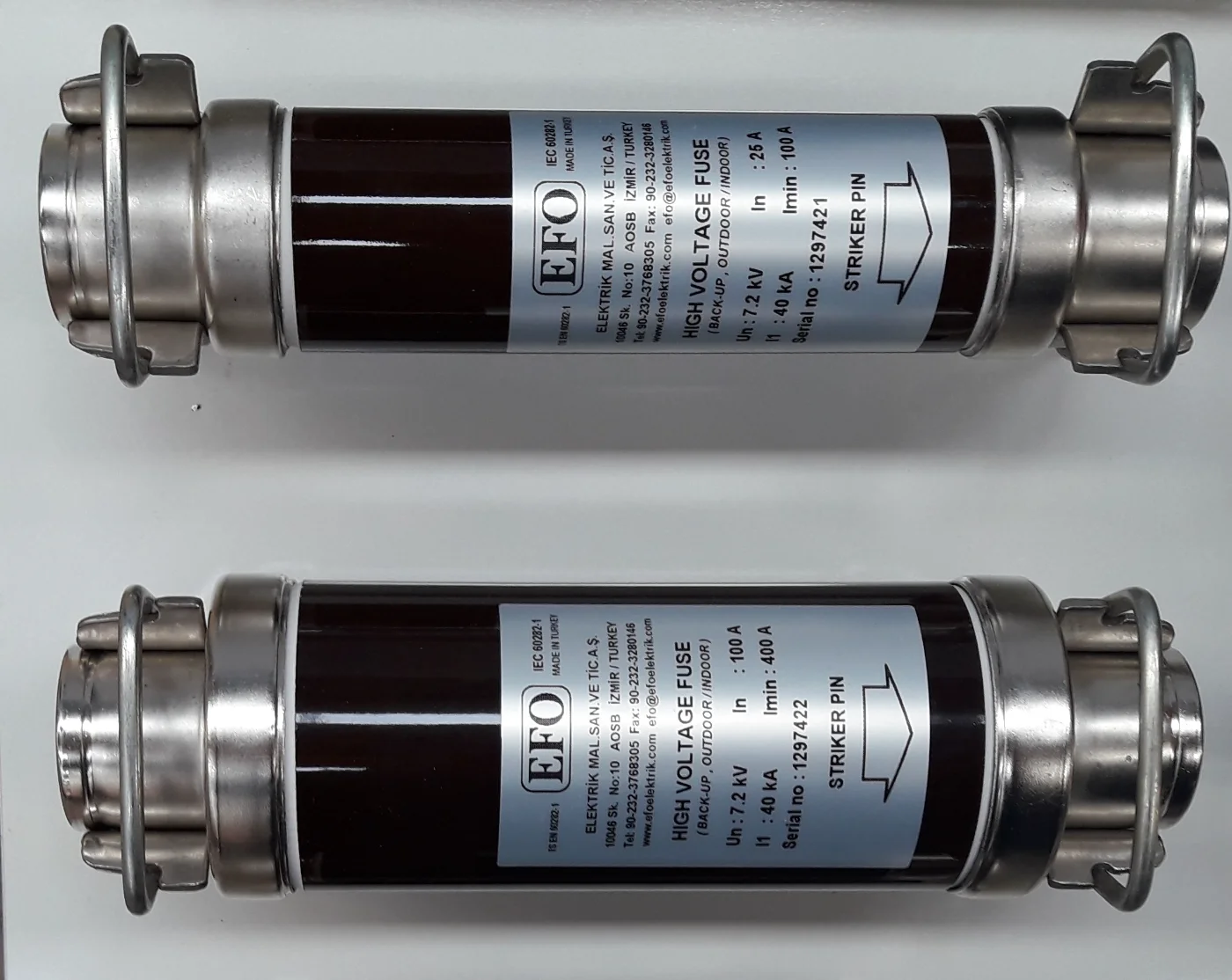

- Equipped with spring-loaded striker pin for mechanical trip actuation and visual indication of blown fuse. Standard initial striker pin force is 80 N, with an optional high-force version available at 120 N.
- Thermal striker option available for enhanced overtemperature protection.
- Custom specifications available upon request.
